SSW-2

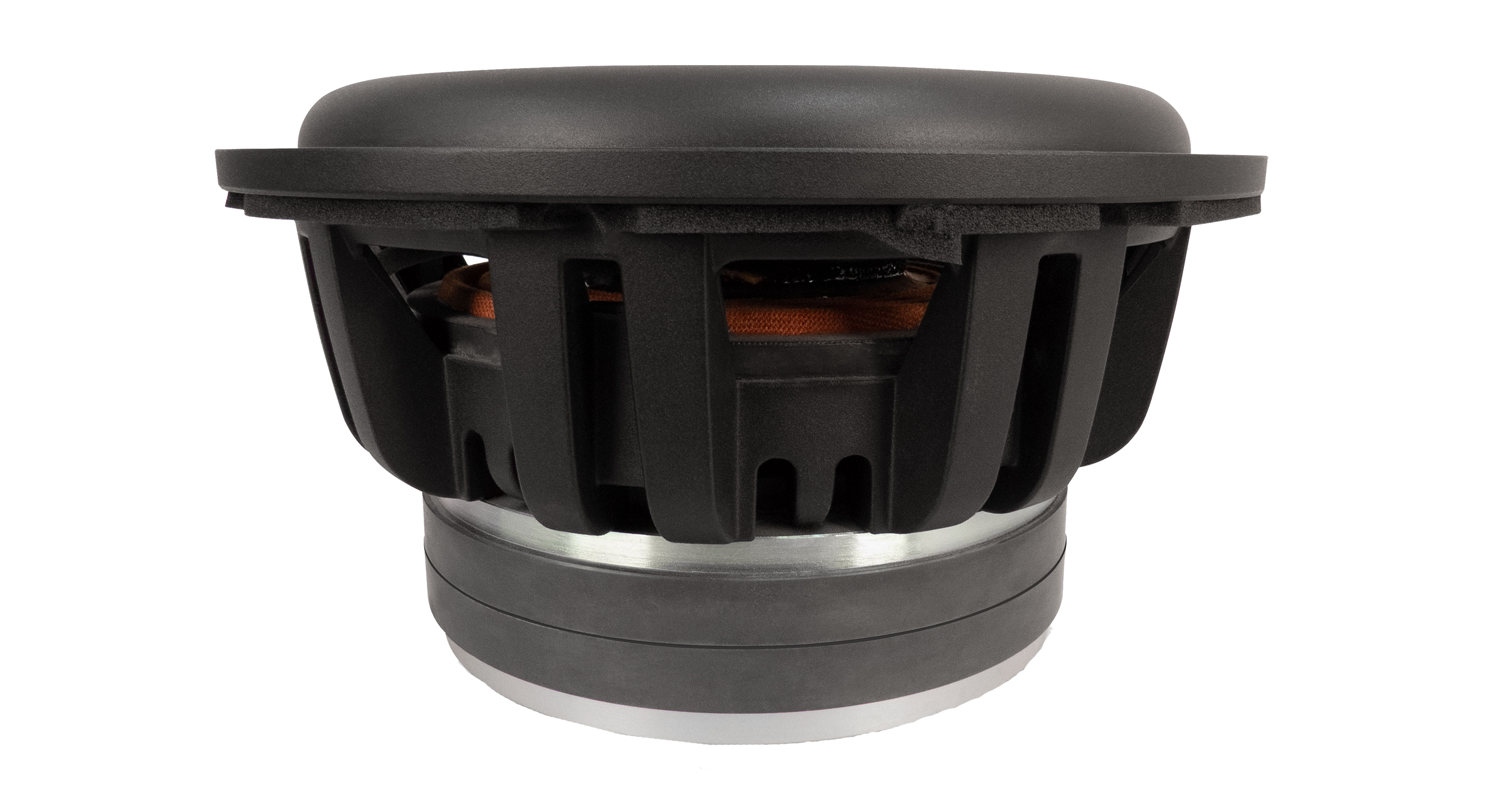

Dual 12" (300mm) Cast-frame, Advanced Aluminum Matrix Cone Woofers with 4-inch (100mm) Voice Coils

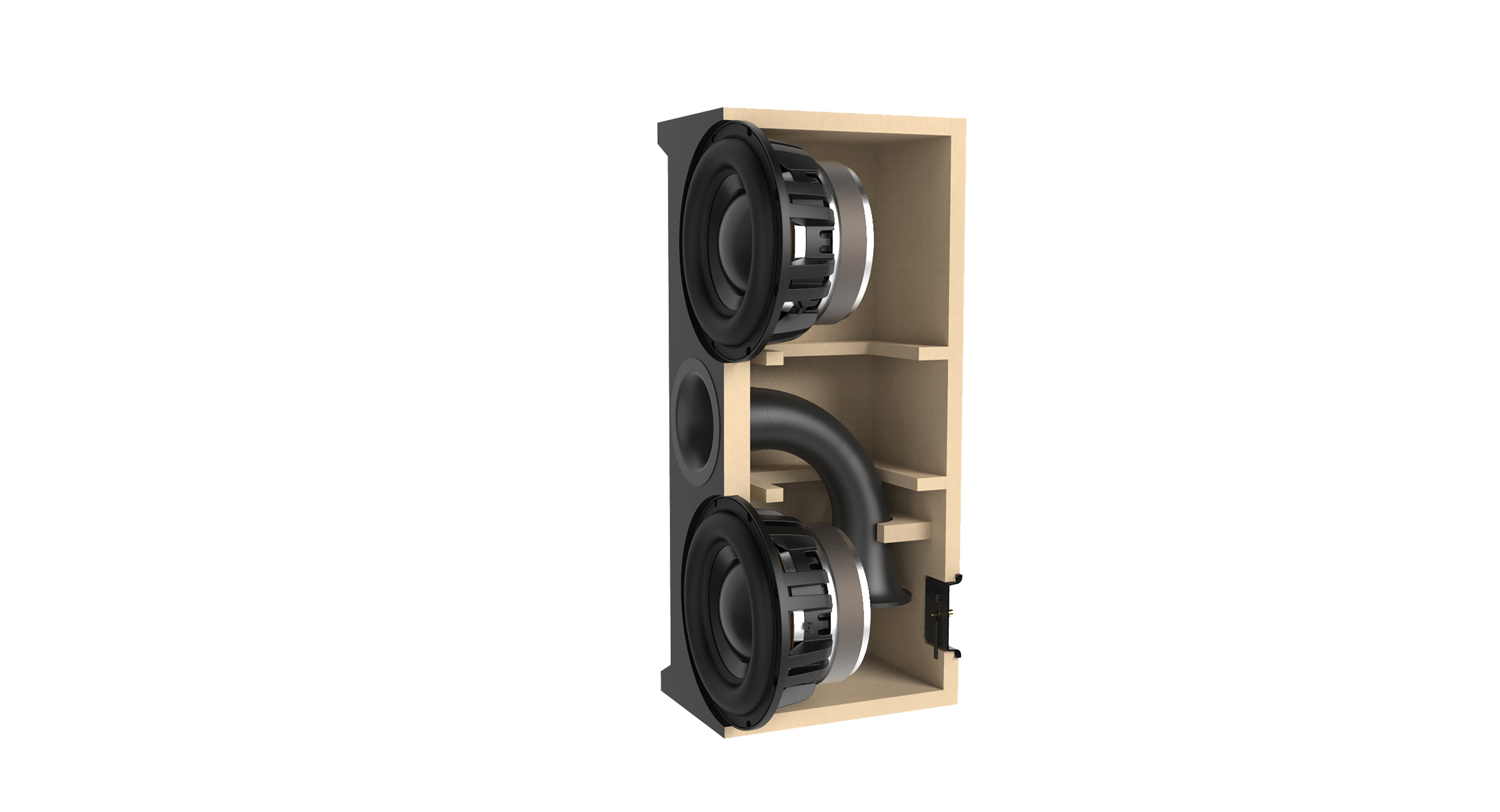

Heavily-braced, 1-inch (25mm) thick MDF Enclosure

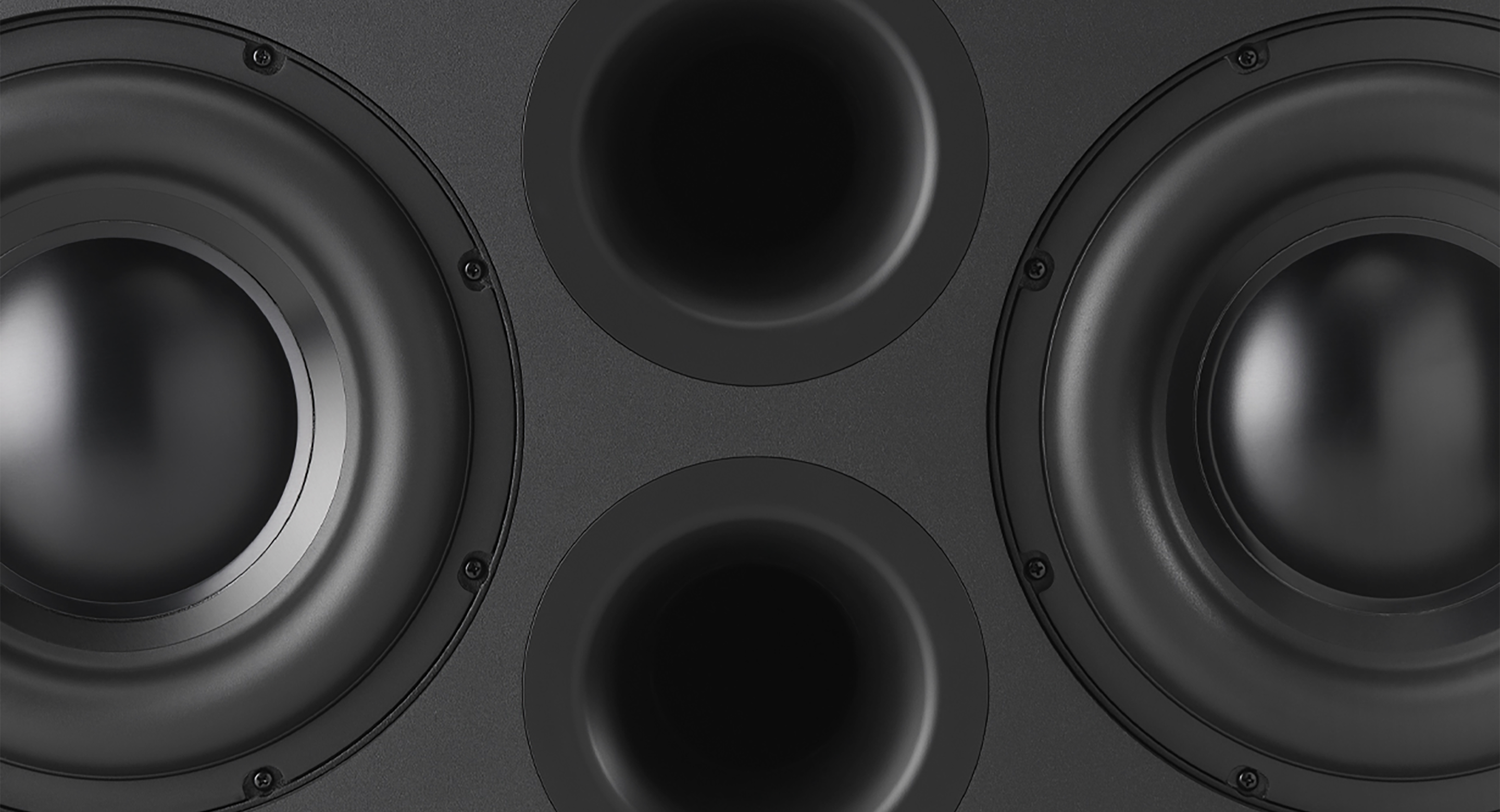

Dual Patented Slipstream™ Front-firing Ports

Функции

SSW-2 Gold-plated Binding Post Input Terminals - Image

Gold-plated Binding Post Input Terminals

SSW-2 Steel frame, Magnetically-attached Black Cloth Grille - Image

Steel frame, Magnetically-attached Black Cloth Grille

Технические характеристики и скачанные файлы

Item# JBLSSW2BLK

Описание

SSW-2

The SSW-2 is a custom in-room/built-in subwoofer designed to complement any of the Synthesis Custom Loudspeakers (SCL Series). It features dual 12-inch (300mm) high-excursion cast-frame woofers in a heavily-braced, ported enclosure constructed from 1-inch MDF throughout, The SSW-2 delivers exceptional performance for custom installations in medium to large rooms.

Общее

Speaker Type
Dual 12” (300mm) Passive Subwoofer
Frequency Response
20Hz - 400Hz (-6dB)
Maximum Recommended Amplifier Power
1200 Watts RMS per channel (compatible with SDA-4600 bridged power output for 1200W per subwoofer)
Impedance
8 Ohms nominal
Sensitivity
93dB (1 Watt at 1 meter) @60Hz
Dimensions (H x W x D)
33” x 19” x 15.3” (838.2 x 482.6 x 389.16mm)
Weight
141 lbs (64kg) per speaker

Аудио

Speaker Type
Dual 12” (300mm) Passive Subwoofer
Frequency Response
20Hz - 400Hz (-6dB)
Maximum Recommended Amplifier Power
1200 Watts RMS per channel
Impedance
8 Ohms nominal
Sensitivity
93dB (1 Watt at 1 meter) @60Hz
Dimensions (H x W x D)
33” x 19” x 15.3” (838.2 x 482.6 x 389.16mm)
Weight
141 lbs (64kg) per speaker
