SDR-35

Dolby ATMOS, DTS:X, and Auro-3D Immersive Audio Decoding

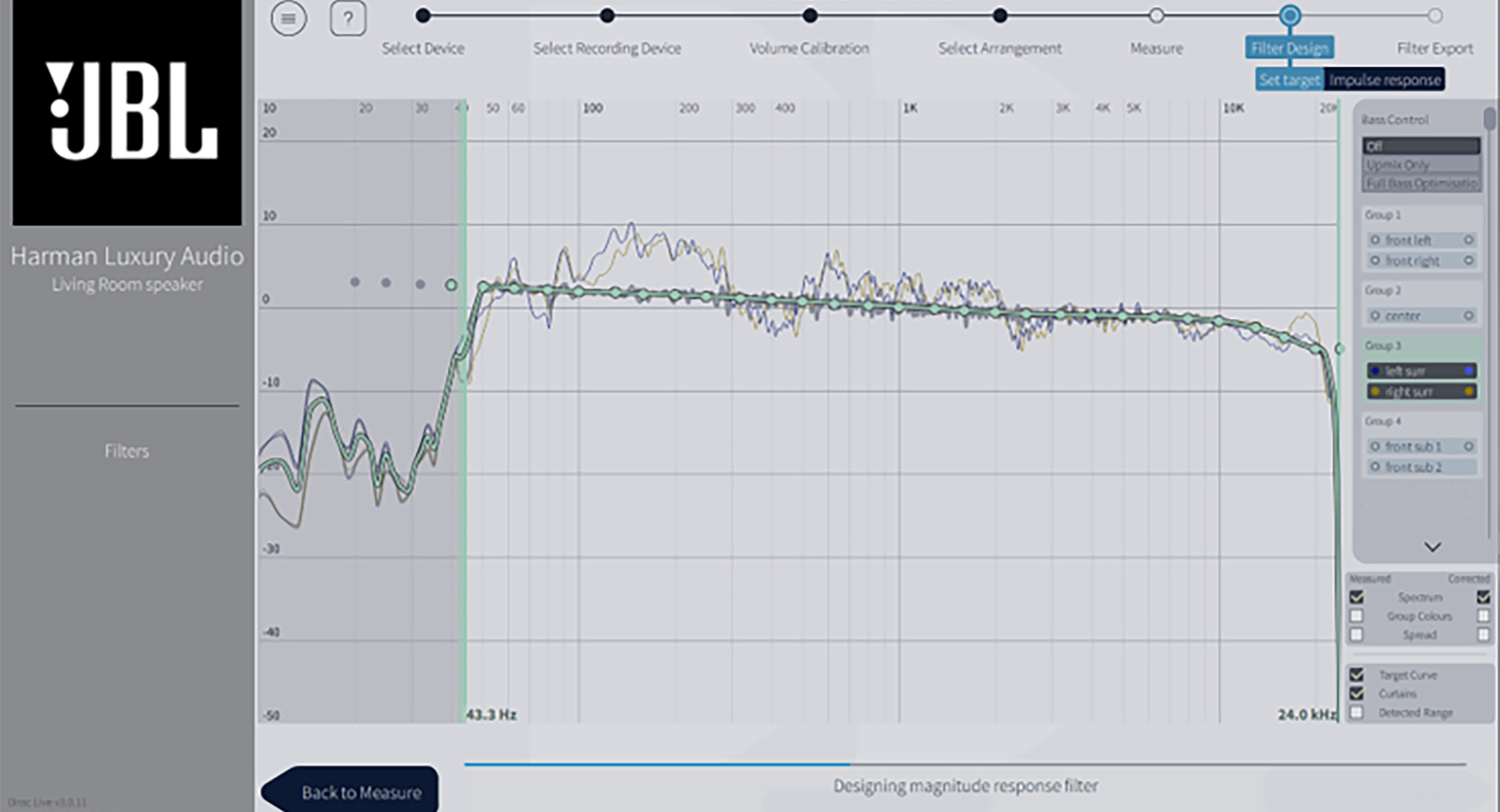

DIRAC Live with Bass Control Room EQ

HDMI 2.0b 4K Ultra HD with 8 Inputs and 2 Outputs, Plus Dolby Vision and HDR10+ Compatibility

Функции

SDR-35 IMAX Enhanced Certification - Image

IMAX Enhanced Certification

SDR-35 Built-in Wi-Fi, Network and Bluetooth Streaming Including Google Chromecast, and Apple Airplay 2, Plus Roon Ready Certification - Image

Built-in Wi-Fi, Network and Bluetooth Streaming Including Google Chromecast, and Apple Airplay 2, Plus Roon Ready Certification

SDR-35 Class G Amplification 7 x 100WPC into 8 ohms, 140WPC into 4 ohms Plus RCA Analog Outputs - Image

Class G Amplification 7 x 100WPC into 8 ohms, 140WPC into 4 ohms Plus RCA Analog Outputs

SDR-35 DANTE™ Digital Audio Networking - Image

DANTE™ Digital Audio Networking

Технические характеристики и скачанные файлы

Item# JBLSDR35EU

Описание

SDR-35

The JBL Synthesis SDR-35 is designed to ensure exceptional performance without compromise and offers an unparalleled feature set that puts it far ahead of the competition. It features full support for Dolby ATMOS, DTS:X, and Auro-3D immersive audio formats. DIRAC Live with Bass Control room EQ with JBL Synthesis system enhancements provides exceptionally accurate system tuning. A full suite of digital and analog connectivity is included along DANTE digital audio networking and HDMI 2.0b (4K Ultra HD) AV switching with support for Dolby Vision and HDR10+ dynamic video, plus IMAX Enhanced certification. Network and Bluetooth streaming are included with Google Chromecast and Apple Airplay 2 support along with Roon Ready certification. Seven channels of Class G amplification are included allowing the SDR-35 to independantly power systems up to 7.1 channels. Full external control allows for complete and easy system integration.

Общее

Continuous power output, per channel
8Ω/4Ω
2 channels driven, 20Hz - 20kHz, <0.02% THD
120W/200W
2 channels driven, 1kHz, 0.2% THD
140W/220W
7 channels driven, 1kHz, 0.2% THD
100W/180W
Residual noise & hum (A-wtd)
<0.15mV
Maximum input
4.5V rms
Nominal sensitivity
1V, 2V, 4V (user adjustable)
Input impedance
47kΩ
Signal/noise ratio (A-wtd ref 100W) normal/stereo direct
100dB/110dB
Frequency response
20Hz—20kHz ± 0.1dB
Nominal output level
1V RMS (max. 5V RMS)
Output impedance
560Ω
THD+N (20Hz—20kHz)
–100dB
Headphone Output
Maximum output level into 32Ω
Headphone Output
Output impedance:560Ω
Mains voltage
110–120V or 220–240V, 50–60Hz
Power consumption (maximum)
50W (Thermal dissipation approx. 170 BTU/hour)
Power consumption (idle, typical)
40W (Thermal dissipation approx. 170 BTU/hour)
Power consumption (standby)
<0.5W
Dimensions W x D (including speaker terminals) x H (including feet)
433 x 425 x 171mm
Weight (net)
10.6kg
Weight (packed)
13.9kg
