SCL-1

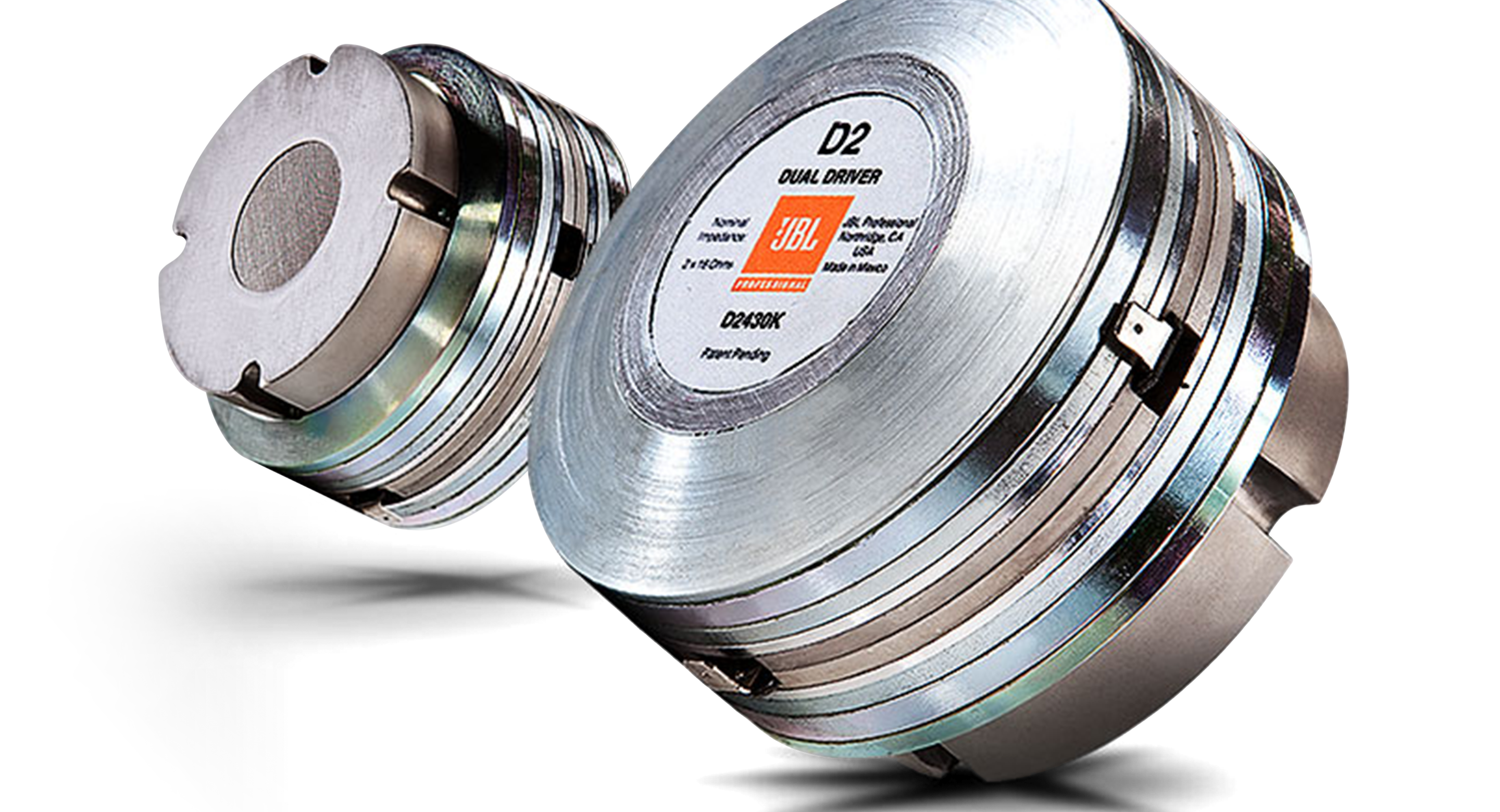

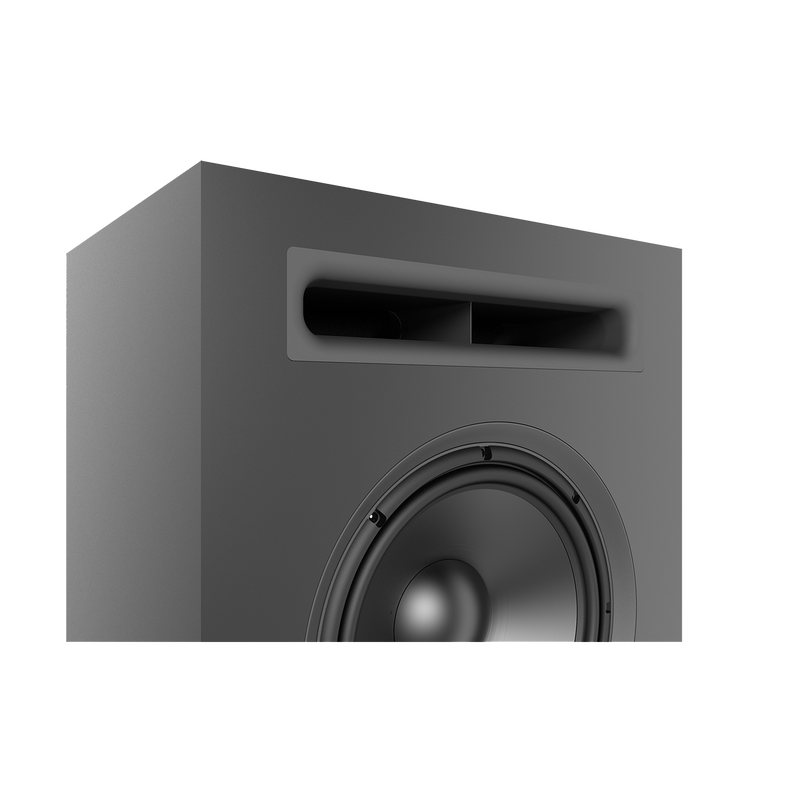

SCL-1 Patented D2430K 3-inch (75mm) Dual Diaphragm, Dual Motor Compression Driver - Image

Patented D2430K 3-inch (75mm) Dual Diaphragm, Dual Motor Compression Driver

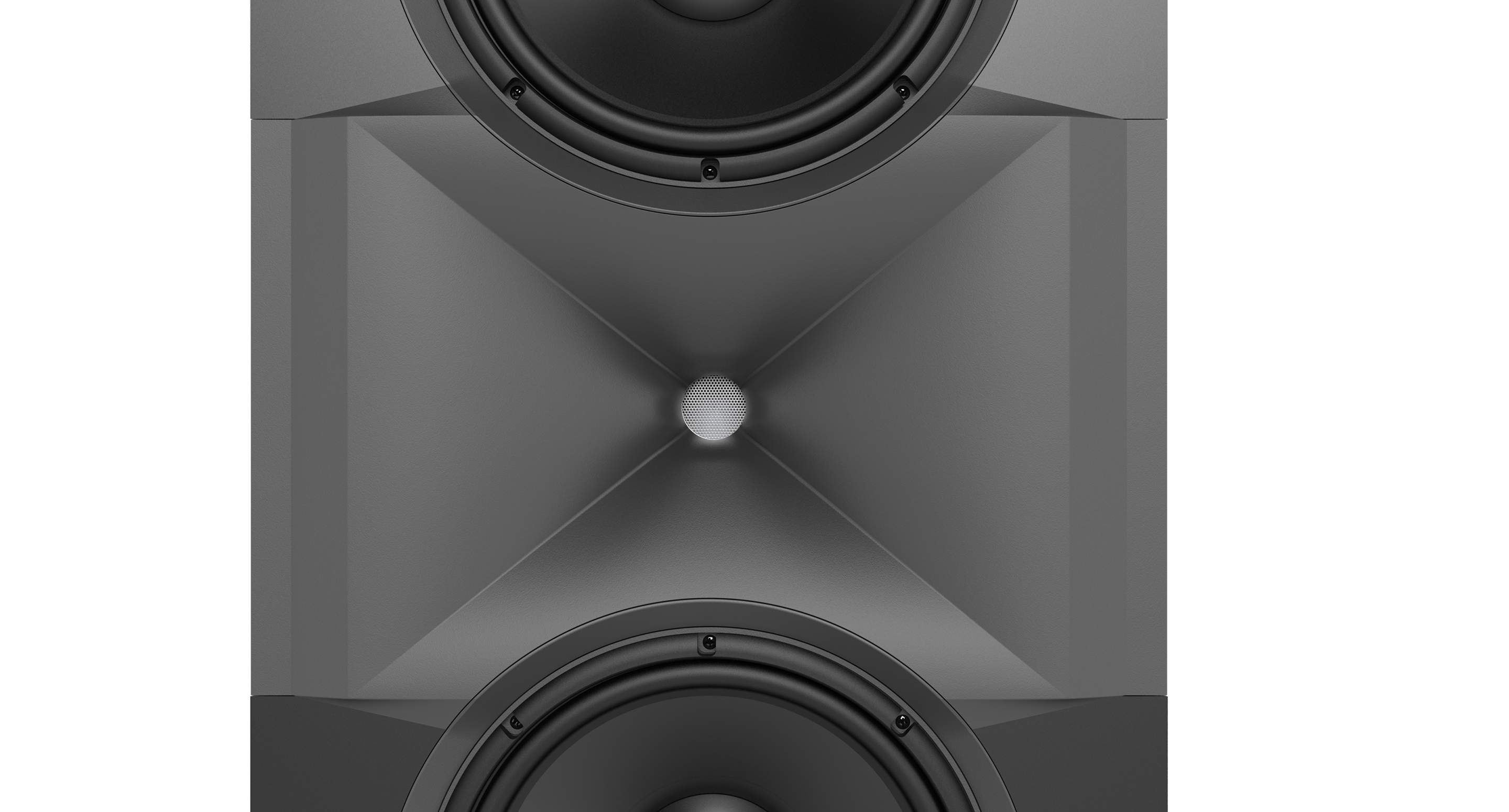

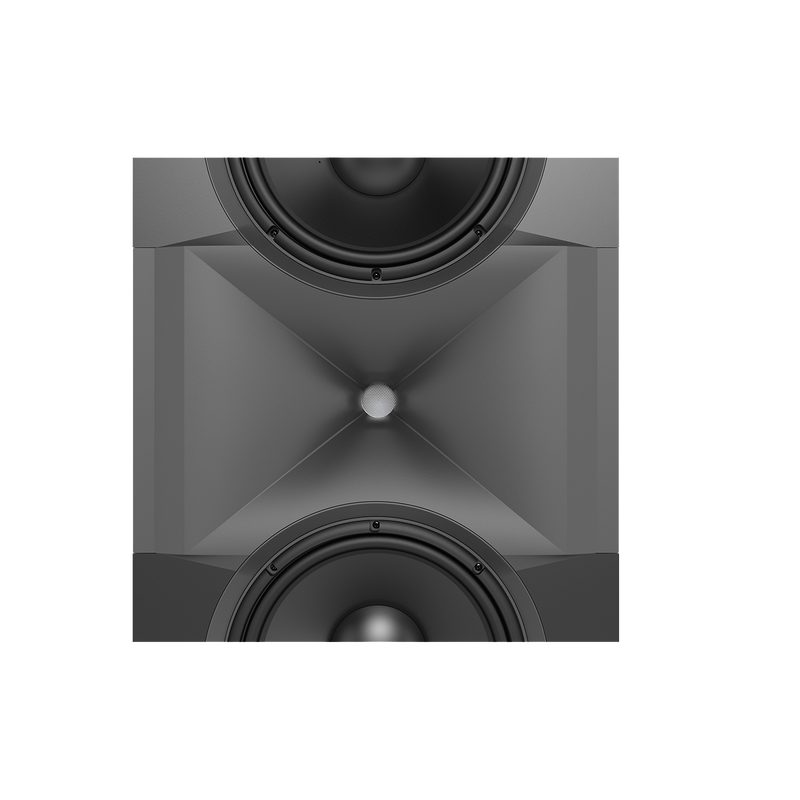

SCL-1 Patented High-Definition Imaging Horn Geometry - Image

Patented High-Definition Imaging Horn Geometry

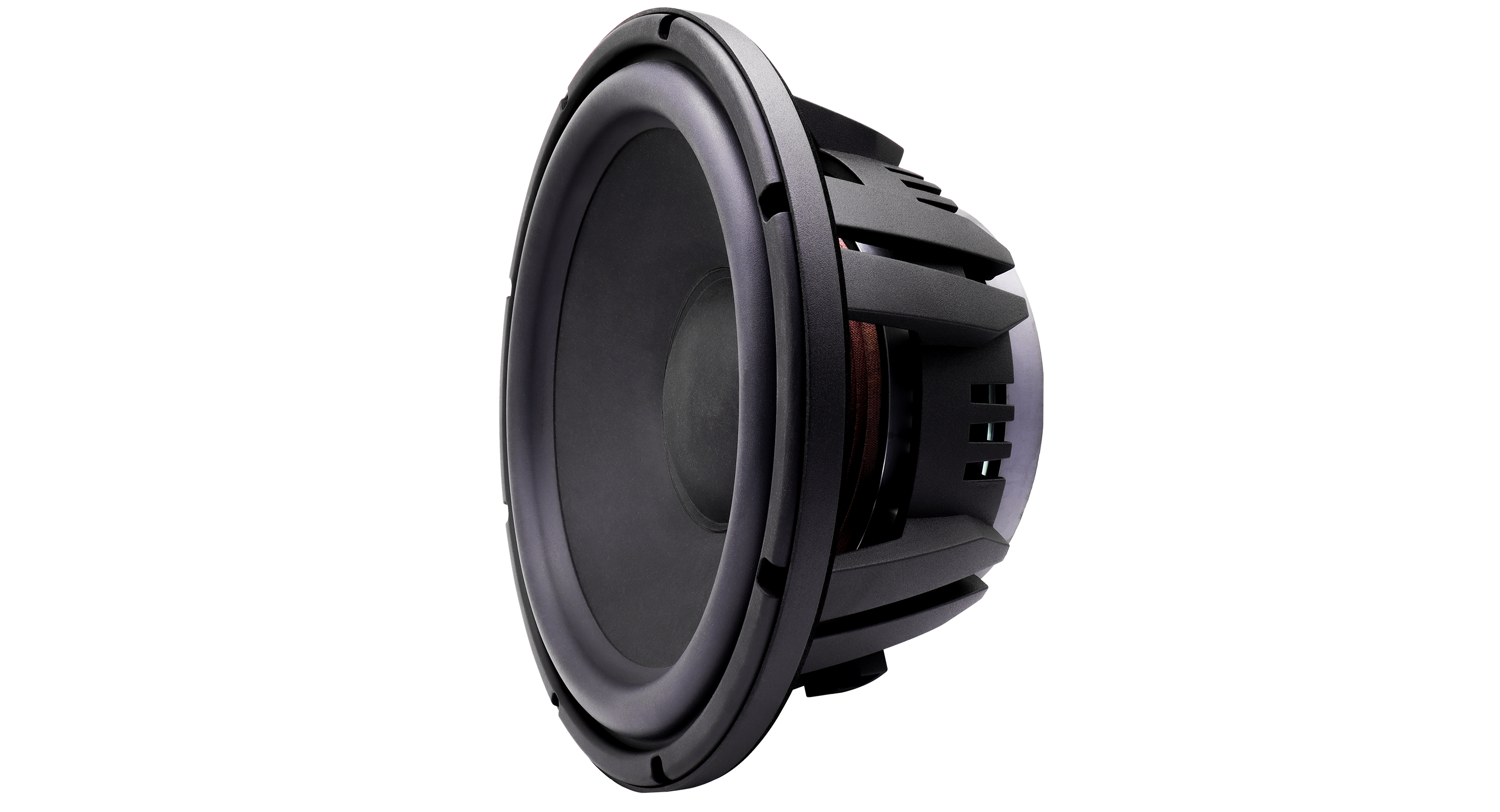

SCL-1 Dual 12-inch (300mm) Cast-frame, Carbon Cellulose Composite Cone (C4) Woofers - Image

Dual 12-inch (300mm) Cast-frame, Carbon Cellulose Composite Cone (C4) Woofers

Функции

SCL-1 Heavily-braced, 1-inch (25mm) thick MDF Enclosure with Sonoglass® Horn - Image

Heavily-braced, 1-inch (25mm) thick MDF Enclosure with Sonoglass® Horn

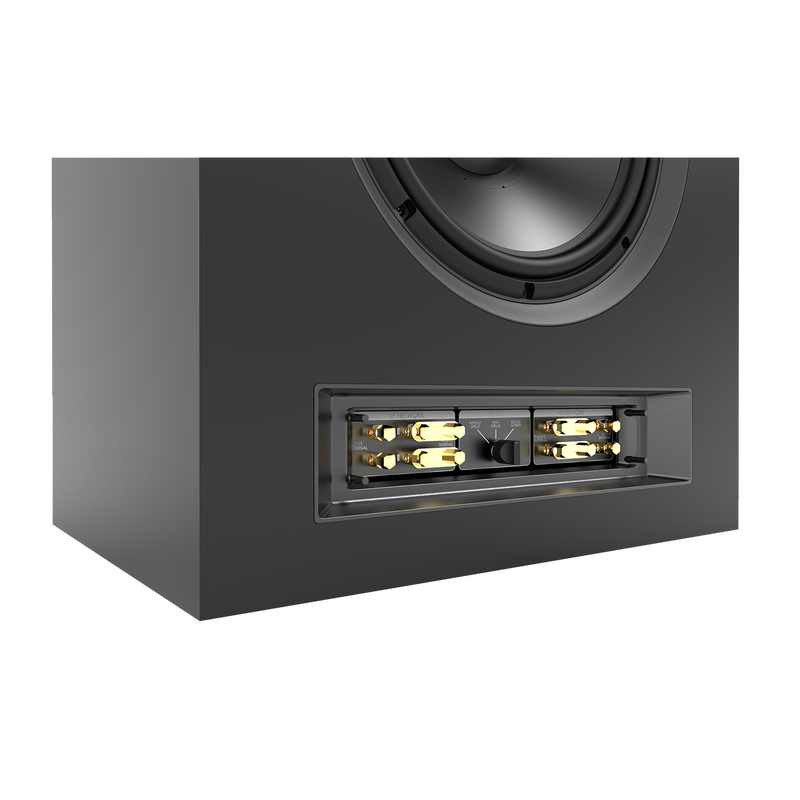

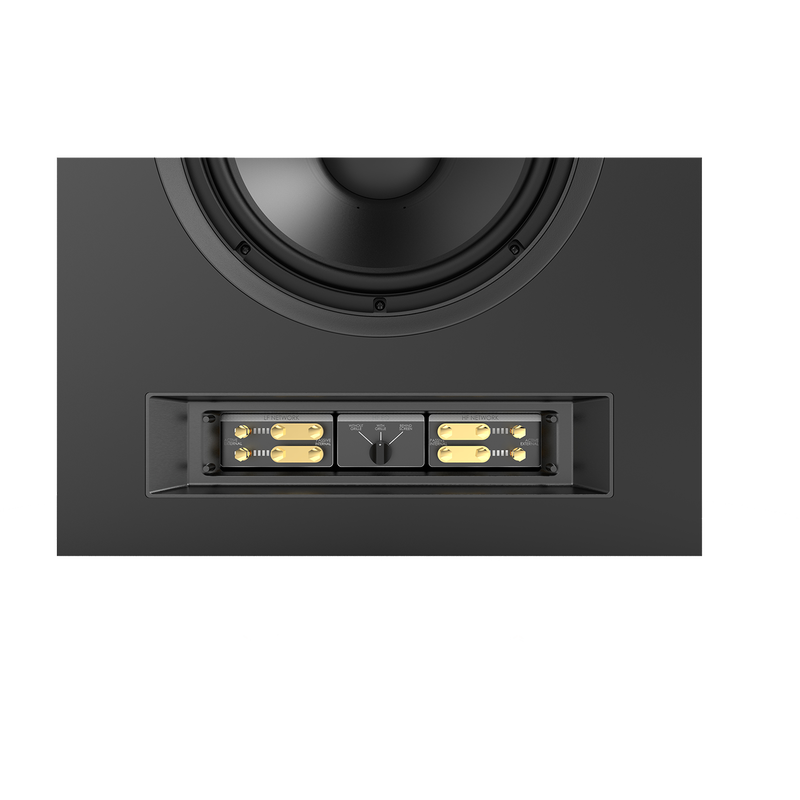

SCL-1 Advanced Multi-capacitor Crossover Network with Front-panel Configurable Settings - Image

Advanced Multi-capacitor Crossover Network with Front-panel Configurable Settings

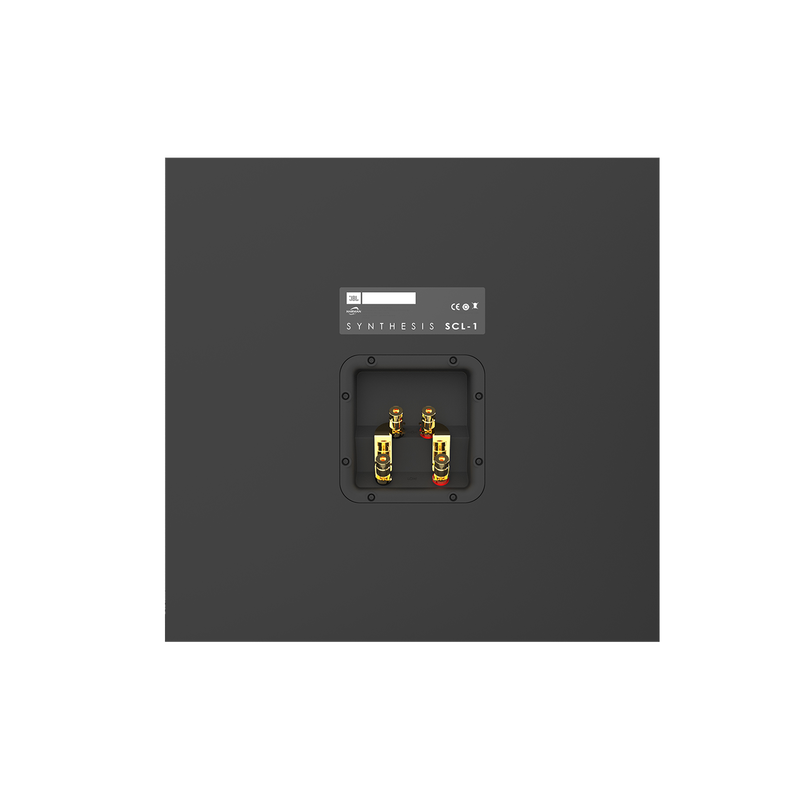

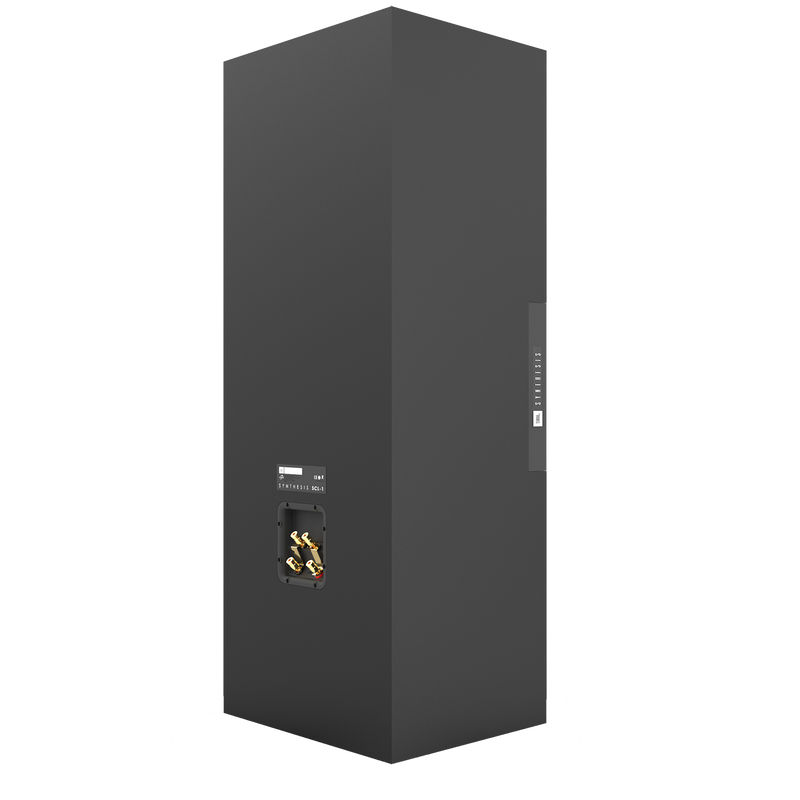

SCL-1 Dual Gold-plated Binding Post Input Terminals - Image

Dual Gold-plated Binding Post Input Terminals

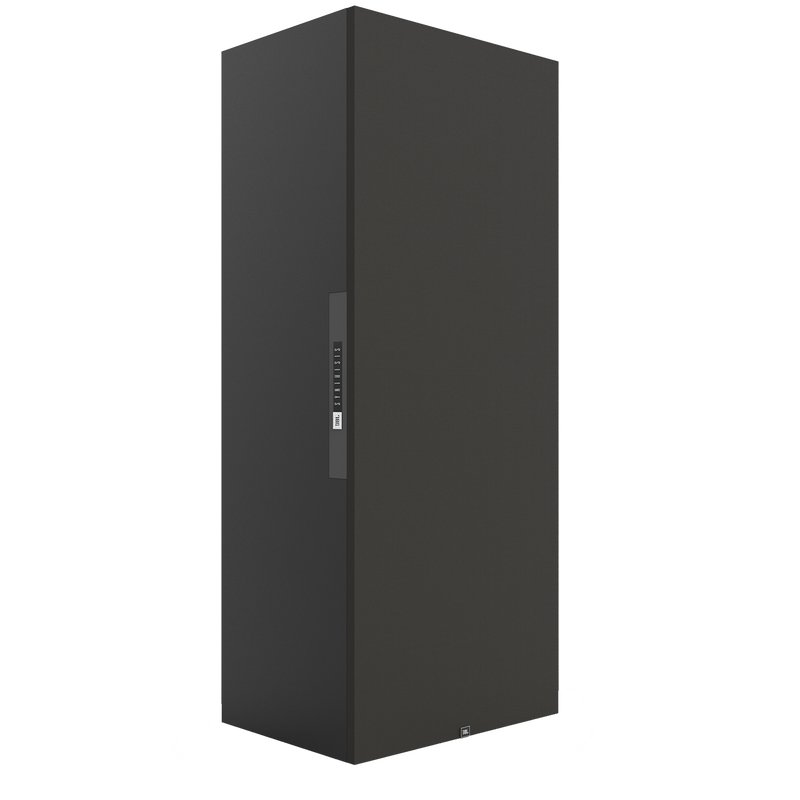

SCL-1 Steel frame, Magnetically-attached Black Cloth Grille - Image

Steel frame, Magnetically-attached Black Cloth Grille

Технические характеристики и скачанные файлы

Item# JBLSCL1BLK

Описание

SCL-1

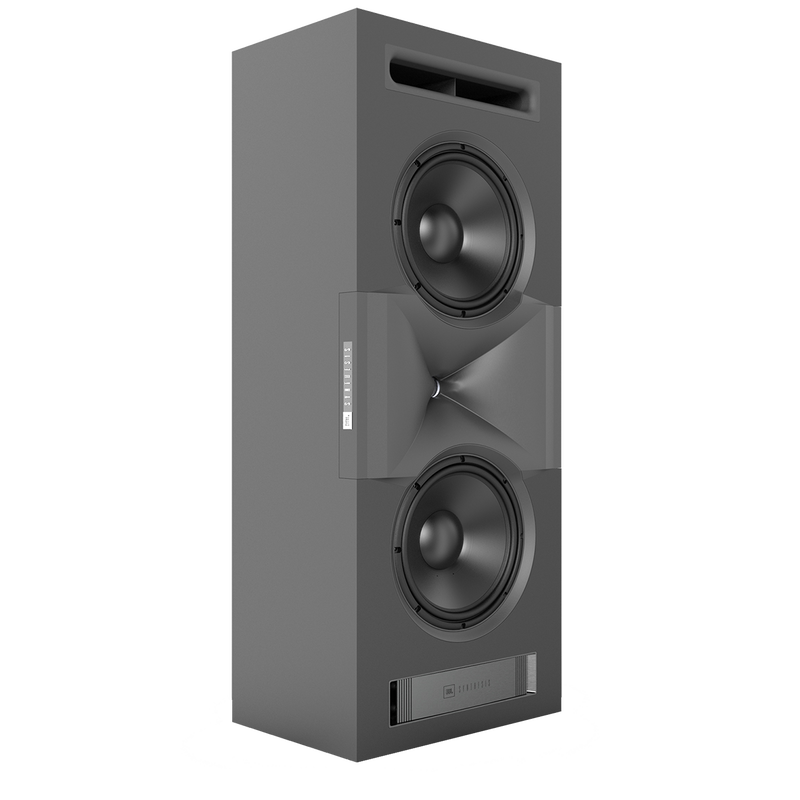

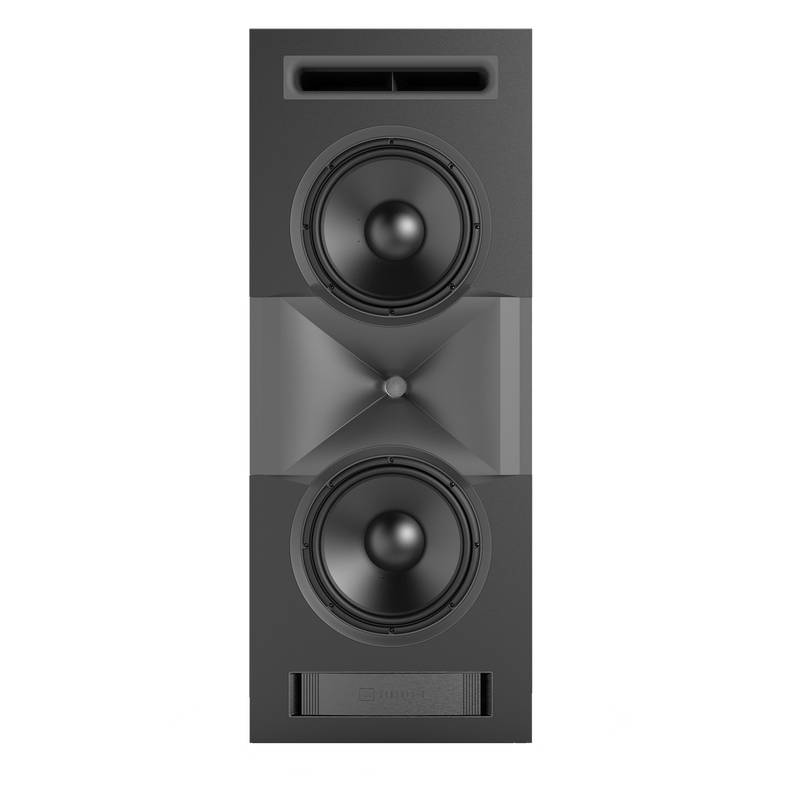

The SCL-1 is a custom in-room/built-in loudspeaker and is the flagship of the JBL Synthesis SCL loudspeaker range. It features JBL's patented D2430K dual 3-inch (75mm) compression driver mated to a large format High-Definition Imaging (HDI™) horn. Dual 12-inch (300mm) Carbon Cellulose Composite Cone (C4) cast-frame woofers operate in a patented Complementary Bass Alignment System (CBAS™) enclosure to provide high-output capability while delivering an easy load to the amplifier. A front-panel configuration panel allows for bi-wiring, bi-amplification, and crossover bypass for fully active operation with outboard digital crossovers. The SSW-1 delivers unparalleled performance behind projection screens and inside custom cabinetry and is ideal for use in large to extra-large rooms.

Общее

Type
2-Way In-room loudspeaker
Low Frequency Drivers
Dual 12-inch (300mm) Black Carbon Cellulose Composite Cone (C4) cast-frame woofers
High Frequency Driver
3" (75mm) dual annular Teonex ring-diaphragm compression driver with dual neodymium motor structures mated to Sonoglass HDI horn
Recommended Amplifier Power (Full bandwidth)
500 WRMS
Recommended Amplifier Power (80 Hz HPF)
500 WRMS
Impedance
4 Ohm
Loudspeaker Sensitivity
94 dB/1W/1m
Frequency Response
40 Hz - 24 kHz (-6 dB), 3rd order LF roll-off
Crossover Frequency
775 Hz
Coverage area, -6 dB @ 10 kHz
Approximately 120 degrees horizontal x 100 degrees vertical
Coverage area, -6 dB @ 20 kHz
Approximately 90 degrees horizontal x 70 degrees vertical
Enclosure Type
Complementary Bass Alignment System (CBAS™)
HF Level Controls
3 Position - No grille, With grille, or With screen
Grille Dimensions
47.98" H x 19" W x 0.787" D (1218.7mm x 482.6mm x 20mm)
Product Dimensions
47.98" H x 19" W x 14.49" D (1218.7mm x 482.6mm x 368.1mm)
Input Type
Dual sets of gold-plated binding posts
Product Weight
177.5 lb. (80.5kg)
Shipping Weight
306.5 lb. (139 kg)
Shipping Units of Measure
Each
Warranty
5 Years
